Clean processes start with intelligent prefiltration
Prefiltration plays an indispensable role in both chemical recovery processes, such as anodizing and steel pickling, and advanced filtration methods, such as nanofiltration. In the field of chemical recovery, prefiltration helps safeguard the integrity and efficiency of the process by eliminating larger impurities from the chemical mixtures, thus preventing potential damage to sensitive recovery equipment and enhancing the overall efficacy of the operation.
In advanced filtration methods like nanofiltration, prefiltration proves essential in prolonging the life of the finer membranes, reducing system downtime due to fouling or clogging, and improving overall filtration performance.
By applying prefiltration techniques, such as microfiltration (MF) and ultrafiltration (UF), industries can ensure the preservation of sensitive stages, reduce operational costs, and enhance the quality and consistency of the final output.
Filter | Protect | Recover
Overview fields of application
Particulate Matter
Microorganisms
Debris
Oils and Fats
Large Inorganic Compounds
Large Organic Compounds
In the context of chemical recovery, prefiltration is employed to ensure the longevity and efficiency of the recovery process.
Industrial processes often produce complex mixtures of chemicals, some of which are valuable and need to be recovered. In this case, the recovery of H2SO4 from Anodizing industry or HCl from steel pickling can be mentioned as example.

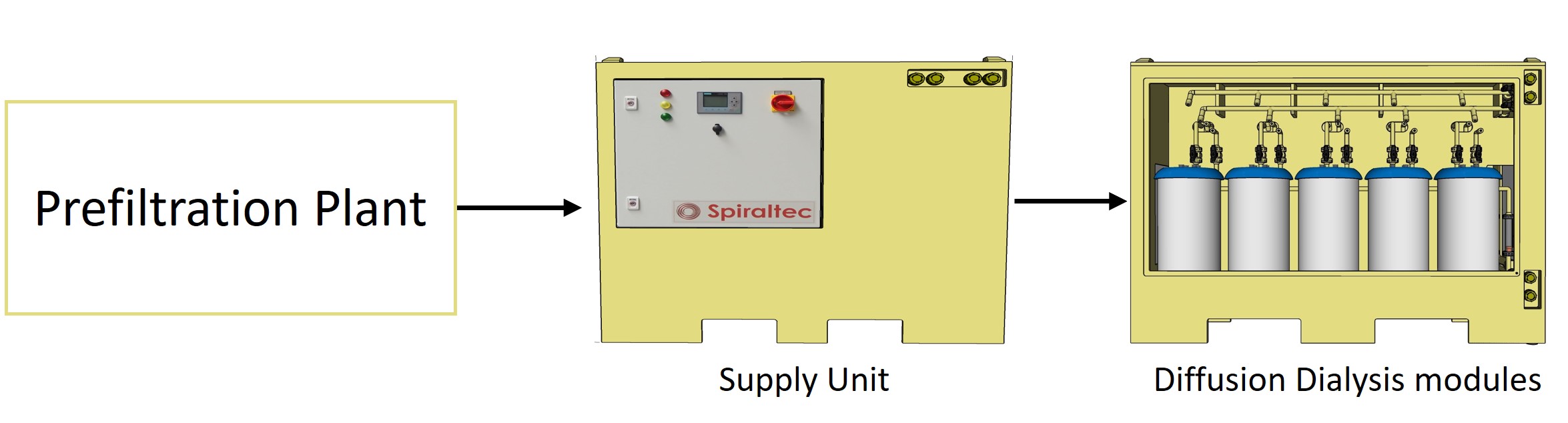

Prefiltration aids in separating larger impurities from these mixtures, preparing them for further precise separation techniques. This step can reduce the burden on downstream processes (e.g Diffusion dialysis), prevent potential damage to sensitive equipment, and increase the overall efficiency and effectiveness of the recovery operation.

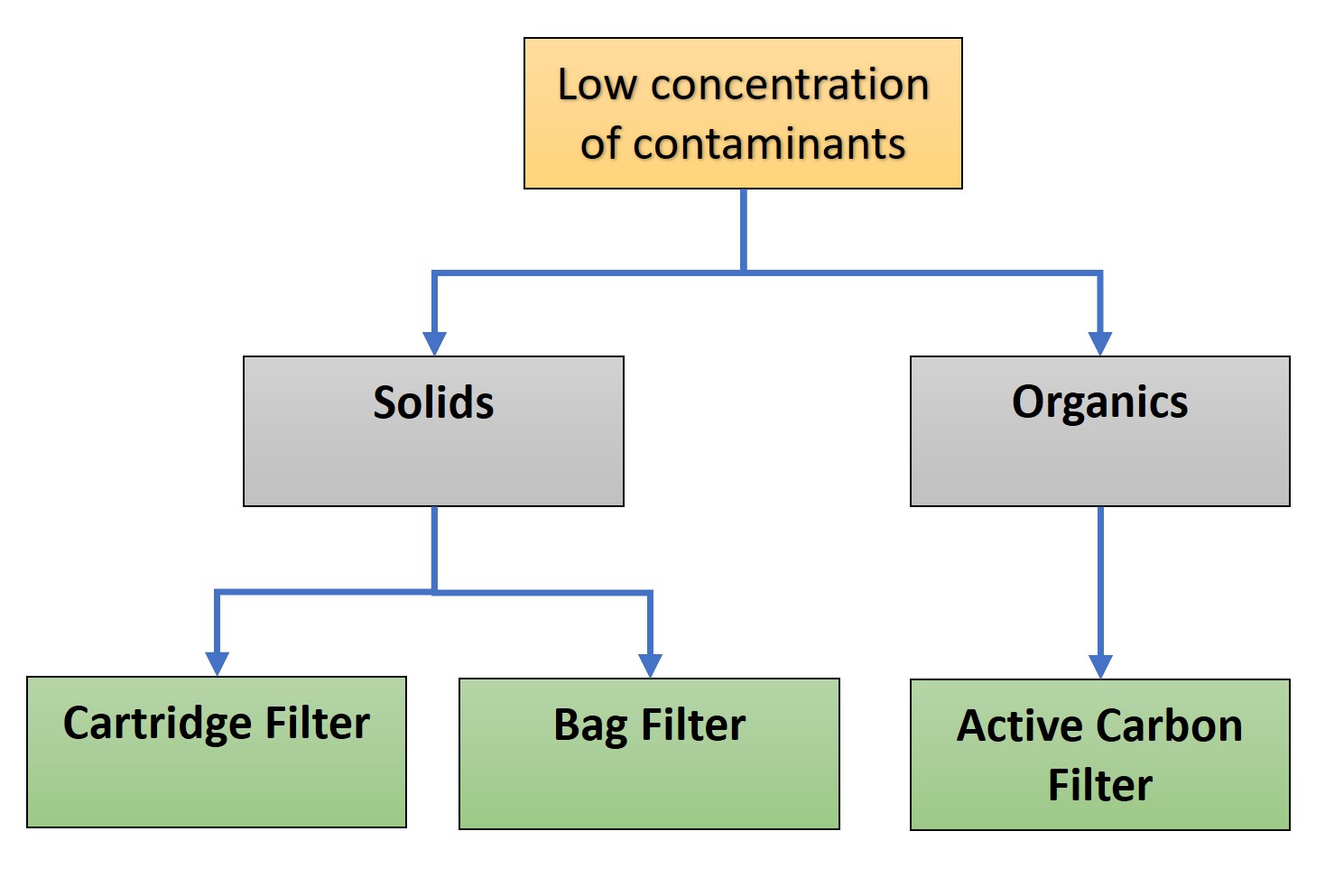

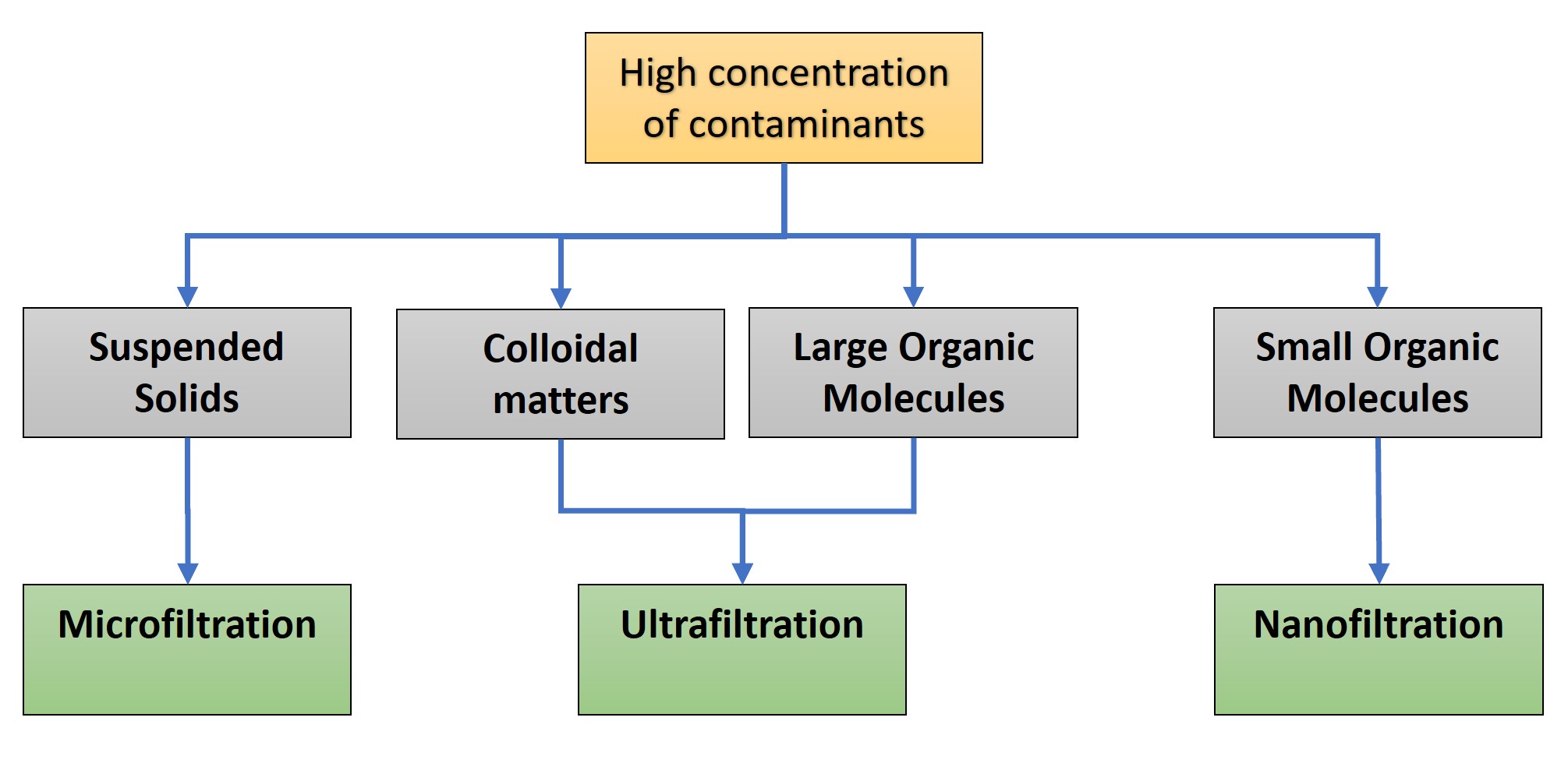

Types of Prefiltration System Based on Contaminants
Proof of concept

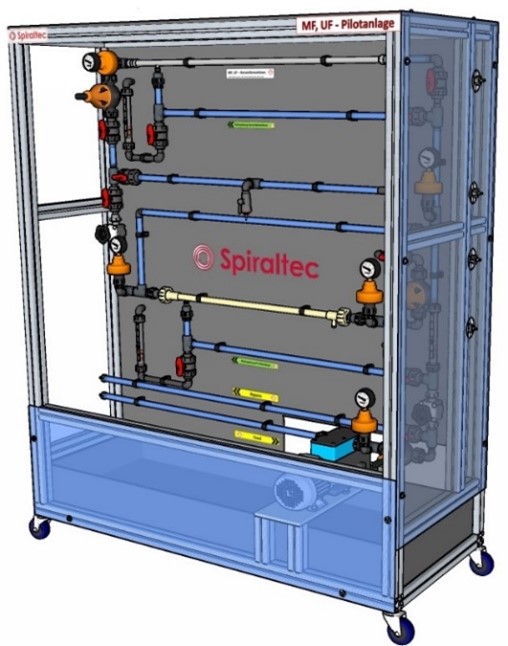

In our effort to enhance unit design, we use our multifunction prefiltration pilot test to obtain key parameters
- Selection of appropriate membrane material (ceramic or polymer)
- Precise determination of membrane pore size (MF: 1.2 - 0.1 µm; UF: 0.05 μm - 500 Dalton).
- Evaluation of COD, TOC, TSS, etc. removal efficacy.
- Estimation of membrane permeability based on the solution type.
- Determination of operation mode (cross-flow or dead-end).
- Backwash duration estimation.
- Estimation required backwash time.
- Determining the optimal operating pressure.
The system is also stable for pH range 0 - 14

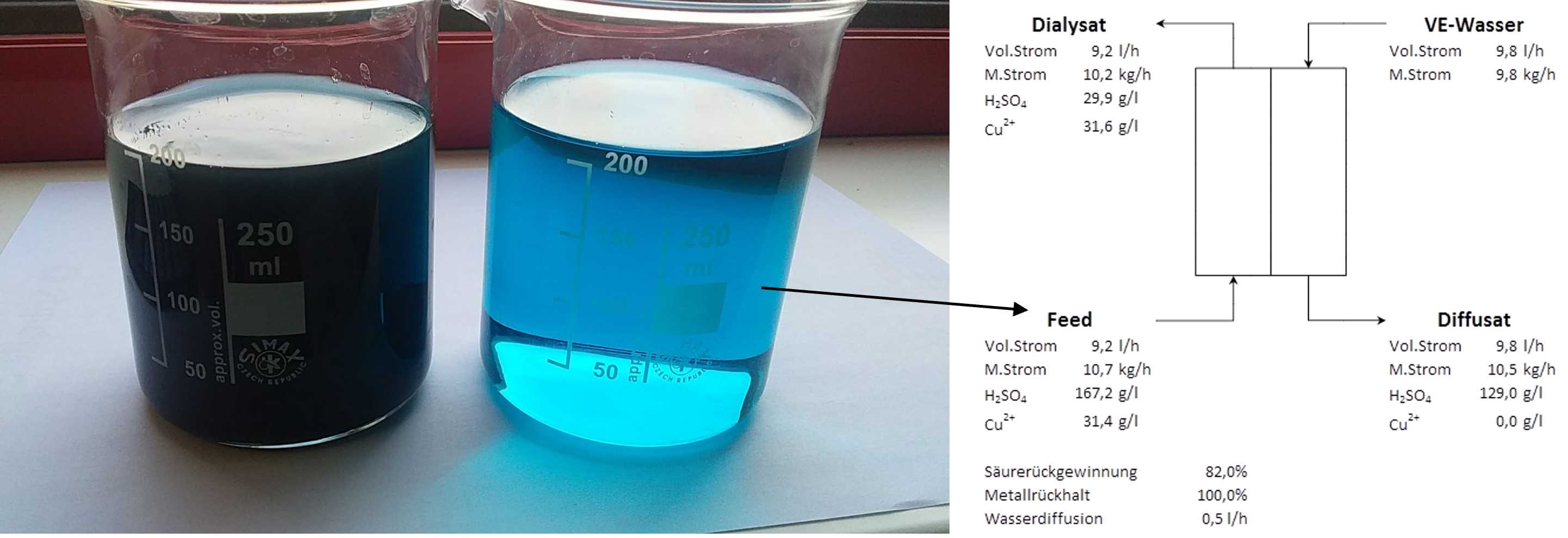

Results of H2SO4 Recovery Using Diffusion Dialysis Modules Following Prefiltration

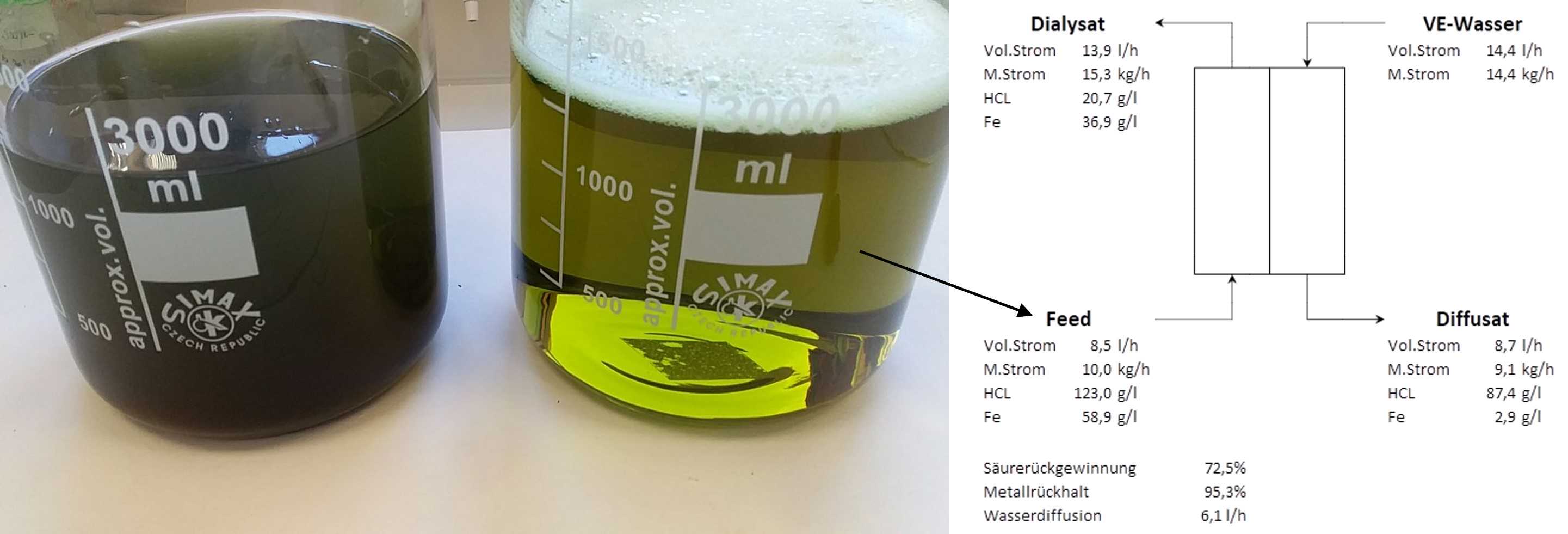

Results of HCl Recovery Using Diffusion Dialysis Modules Following Prefiltration
